Features:
Raceway - Circular grooves
High Speed
High Radial loads
Low-Noise

Specifications:

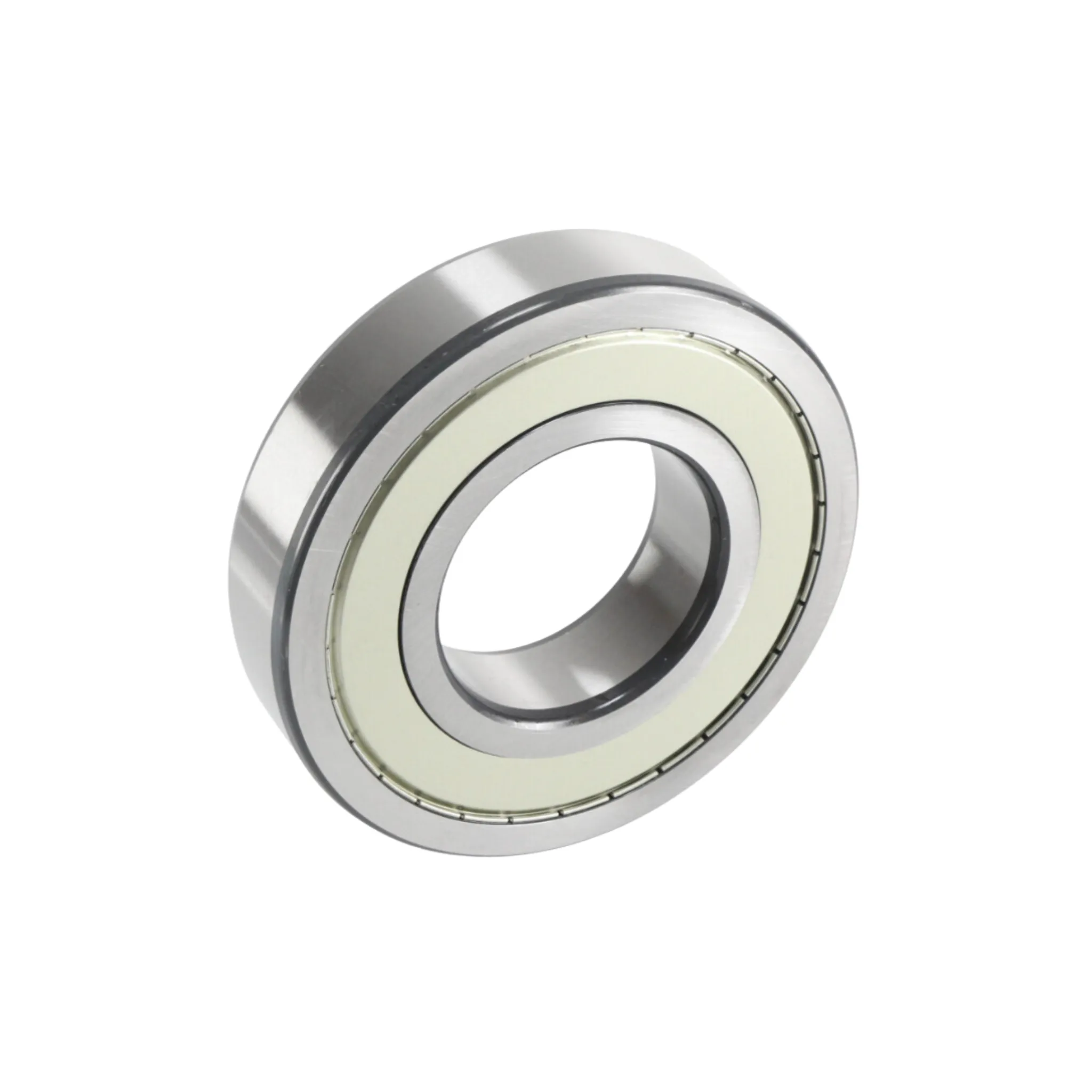

Manufacturer: Regal Rexnord - Rollway Bearings
Manufacturer Part Number: 6316ZZC3EMQ
Product Type: Ball Bearing
Series: 6300
Bore Type: Straight
Bore Size: 3.15"
Outside Diameter: 6.69"
Overall Width: 0.35"
Static Load Rating (kN): 86.5 kN
Seal Type: Shield
Sealed: Shielded - Both Sides
Misalignment: No
Rolling Element: Ball
Cage Material: Steel
Dynamic Load Rating (kN): 123 kN
Material: 52100 Bearing Steel
Number of Rows: 1
Speed (Max) Grease: 3,800 RPM
Is Full Complement/Caged?: Caged
Platform: Deep Groove Ball Bearing
Radial Clearance: C3
Dimensions: 7.45" x 7.8" x 2.3"
Weight: 8.25 Lb
